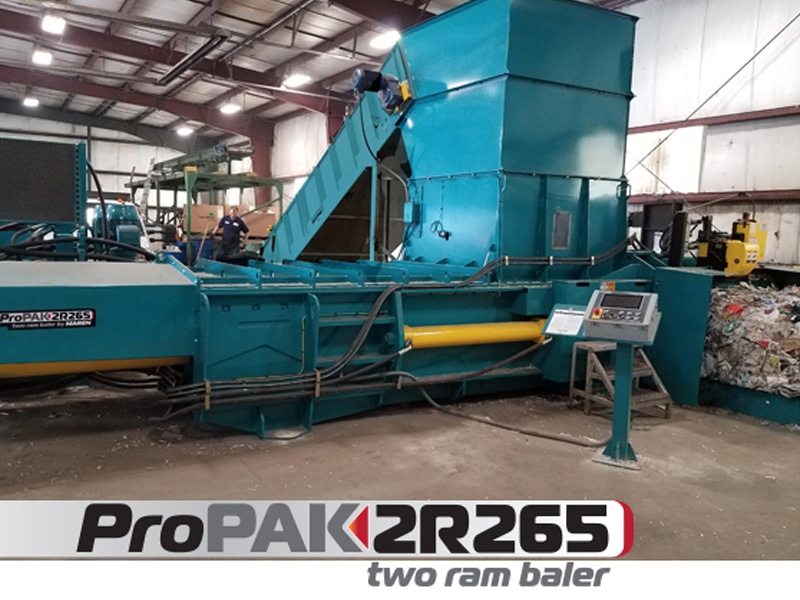

When there’s tons of work to be done, turn to the Maren ProPAK 2R225 Two Ram Baler. This fully automatic 2 RAM baler is available with dual motors to maximize performance and throughput while minimizing electrical consumption. A Large “Wide box” opening is great for handling a variety of recycled materials including scrap metals, post-industrial cardboard, plastic and more. The robust ram and door position transducers prevent shear jam while providing users automatic control and bale size and final bale finishing.
Maren’s SmartBale Intelligent baler control allows for password-protected saving of a complete set of parameters for each commodity to be baled. This eliminates cheat sheets, allowing an operator to reconfigure the baler during a material change by simply selecting the new material from a menu. In addition, with Maren’s Optional Smartbale Mobile Remote interface you can monitor and control the operation of your ProPak two ram baler with a portable full color touch screen.
- Large “Wide Box” (57” W x 64” or 80” L), clear opening with standard tongue and groove floor, ideal for both post-Industrial cardboard and scrap metals, while easily processing paper, fiber, plastic and other recyclables.
- Interlocking plate steel construction distributes stresses away from welds to tabbed locking joints.
- Chassis floor and sides constructed of seamless single sheet plate steel.
- Replaceable “AR” hardened wear liners allow for limitless replacement of all chassis wear surfaces for years of reliable service.
- Multi edge replaceable shear blades reduce cost by allowing blade rotation to gain additional new cutting edges before blade replacement. Extended progressive cutting profile shears material over a long distance effectively reducing shear jams.
- 400-600 gallon floor mounted hydraulic oil reservoir shipped full of oil.
- Clogged oil filter sensor, high oil temp sensor and low oil level sensors automatically protect your investment while notifying the operator attention is needed.
- Robust ram and door position transducers allow automatic control of bale size, final bale finishing, shear jam prevention, wire placement and bale ejection.
- Bale separation door facilitates instant material changes and virtually eliminates cross contamination between bales. The door’s transducer positioning allows up to 13” oversized bales to eject without jam, yet closely guides the bale to the tier for tight bales and reduced fall-off.
- All safety E-Stops and contactor resets monitored by a dual redundant safety relay system.
Motor: Dual 20 hp, 20 hp or 40 hp TEFC 3 Phase motors generate 40, 60 or 80 hp. Motors automatically stage start to reduce surge on electric service. During low production demand motors can be de-selected to reduce overall electrical consumption and throughput while maintaining 100% bale weights and shearing performance.
Hydraulic: A simple but innovative hydraulic system allows the 2R265 to run faster and more efficiently while being more serviceable. highly efficient piston pumps rated for 5,100-6,100 psi run at only 4,200 psi ensuring less stress and long life. All pumps are mounted below tank level to eliminate start-up cavitation and extend pump life.
Hydraulic System: High Efficiency Regenerative.
Platen Force: 267,000 lbs.
Platen Pressure: 156 psi. Dry Cycle Time at full penetration : – 14 seconds (80hp & 64”L hopper) – 25 seconds (40hp, 80”L hopper)
Touch Screen Operator Interface
- Maren’s SmartBale Intelligent baler control allows password protected saving of a complete set of parameters for each commodity to be baled. At run time the operator simply selects the proper material from a drop down list and the ProPak 2R265 automatically configures for the commodity to be baled. Settings automatically adjusted include wire count, wire placement, baling pressure, bale size, photo eye selection, conveyor speed, multi motor settings and many more.
- Displays statistics such as current bale size, remaining for full bale, average charge and largest charge, all helping the baler operator make easy cleanup free material changes.
- Password protected maintenance screens accessible to onsite maintenance staff allow further customization and simplify troubleshooting with troubleshooting screens for inputs, outputs and other statistics.
BALE SIZE: Length: 60 inches | Width: 38–51 inches (*OS) | Height: 30 inches
* Bale Weights are approximate, and may differ with moisture content, material density, etc.
* Due to Maren’s commitment to product quality and refinement, these specifications are subject to change without notice, and without incurring responsibility to units previously sold.
|NON INSULATED COPPER WIRE
(percentage of caps on bottles will vary bale weights)
