Maren ProPAK 2R185
Download Brochure
  • POST CONSUMER RECYCLING
  • DISTRIBUTION & WAREHOUSING
  • SCRAP METAL
  • MANUFACTURING BYPRODUCT
  • SHREDDED CORRUGATED,  FOLDING CARTON STOCK AND  COATED STOCK
  • RECYCLED CORRUGATED  CONTAINERS (OCC)
  • MOLDED FIBER PRODUCTS
  • NEWSPRINT INCLUDING ONP
  • MIXED AND OFFICE PAPER
  • MAGAZINES & SIGNATURES
  • SHREDDED PAPER
  • TISSUE MILL BROKE
  • PAPER & WOOD DUST
  • TEXTILE
  • FOAM
  • PET & HDPE BOTTLES
  • ABS PLASTIC
  • PLASTIC FILM
  • ALUMINUM CANS (UBC)
  • STEEL CANS
  • STEEL SHEET AND FORMINGS
  • CARPET AND PADDING
  • ALUMINUM RADIATORS
  • ALUMINUM WIRE & CLIP
  • COPPER WIRE & CLIP

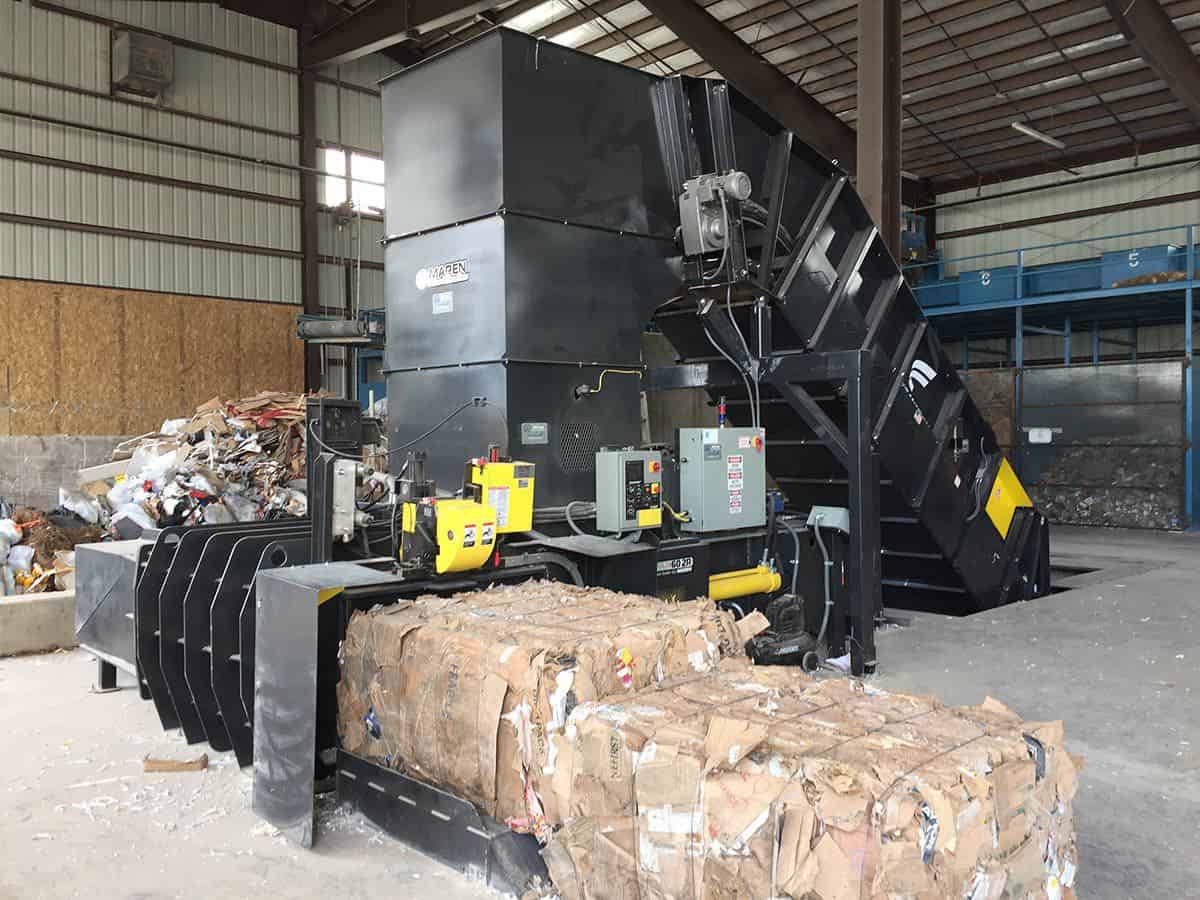

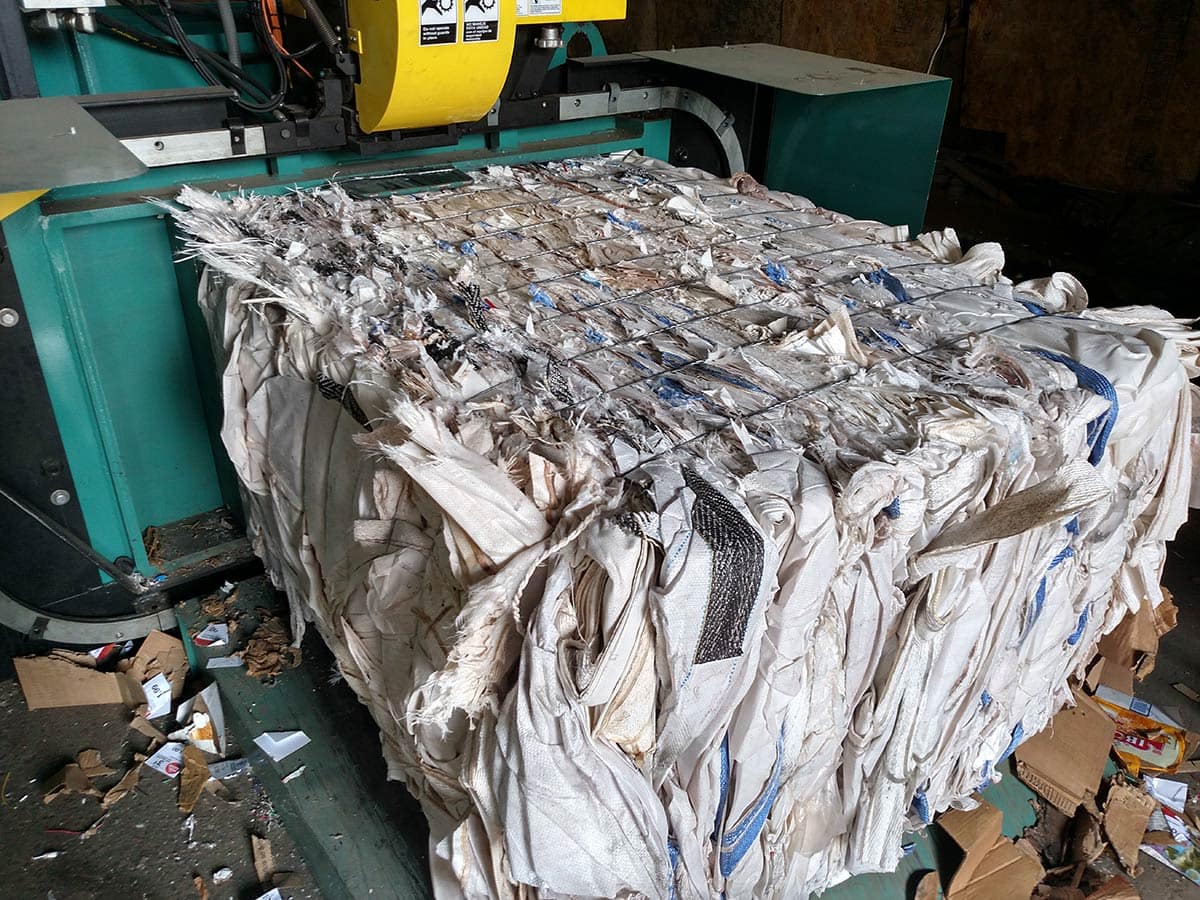

The Model ProPAK 2R185 is a fully automatic 2 RAM baler. The extra large feeder hopper can be adapted to gravity, pneumatic or belt conveyor automatic feed devices. After each bale is made, the chamber completely clears—so go ahead, switch materials on the fly—without making unwanted contaminated bales. A built-in shear eliminates the unnecessary extra step of “pre-conditioning” difficult materials. Using either Accent 470 or L.P. Pinnacle II wire-tie systems, the bale gets tied underneath and the short way: saving wire, increasing bale density and holding bales together better during transportation. This adds up to time and money savings!

  • Interlocking construction; stress is barred on steel not welds
  • Chassis floor, sides, and top are single sheet plate steel
  • No metal to metal contact in baling chamber platen guides on Nyoil wear bearings
  • Abrasion resistant 450 hardened wear liners eliminate costly floor replacements
  • Progressive shear cuts material over a distance allowing difficult materials to pass without jams
  • Machine can be greased from exterior
  • 140 gallon hydraulic oil reservoir shipped full of oil—no oil to buy
  • Pressure sensing clogged oil filter sensor eliminates wasteful time based maintenance practices by notifying operator when filter actually warrants replacement
  • Ram position based on laser distancing (no moveable wear items such as limit switches)
  • Bale Separation door allows for 8” of over charge
  • All safety E-Stops monitored by a redundant monitoring system

Performance Data

Motor: 20hp ; (30hp Optional) TEFC Motor 460 Volt 3 Phase. Efficiency of hydraulic system allows for higher production rates with lower horsepower required

Hydraulic: A simple but innovative hydraulic system allows the 2R185 to run faster and more efficiently while being more serviceable. Highly efficient piston pump rated for 5,100 psi runs at only 4,200 psi ensuring less stress and long life. All pumps are mounted below tank level to eliminate start-up cavitation and extend pump life.

Hydraulic System: Regenerative, 4,100 psi hydraulic pressure, 4500 psi max system pressure

Platen Force: 180,562 lbs.

Platen Pressure: 109 psi.

Cycle Time: SHORT : 24 seconds; FULL : 29 seconds

Touch Screen Operator Interface

  • Save a machine configuration for each different commodity being baled. Operator selects the material being baled and the 2R automatically configures for the commodity to be baled
  • Automatically cycles rams between commodity changes to eliminate bale contamination
  • Create and save specific material recipes
  • Shows exactly how much bale is complete inside the chamber for easy material changes
  • Adjust speed of conveyor(s) independently
  • Password protected maintenance screens are accessible to onsite maintenance staff allows further customization and simplifies trouble shooting

Baleweights (Tons/HR.)*

BALE SIZE: 60″ Length x 40-48″ Width (*OS) x 30″ Height

* Bale weights are approximate and may differ with moisture content, material density, etc.

Baleweights Tons/Hours
OCC 1,500 lbs. (4.4)
MAGAZINES 2,000 lbs. (9)
NEWSPAPER 1,500 lbs. (8)
OFFICE PAPER 1,500 lbs. (8)

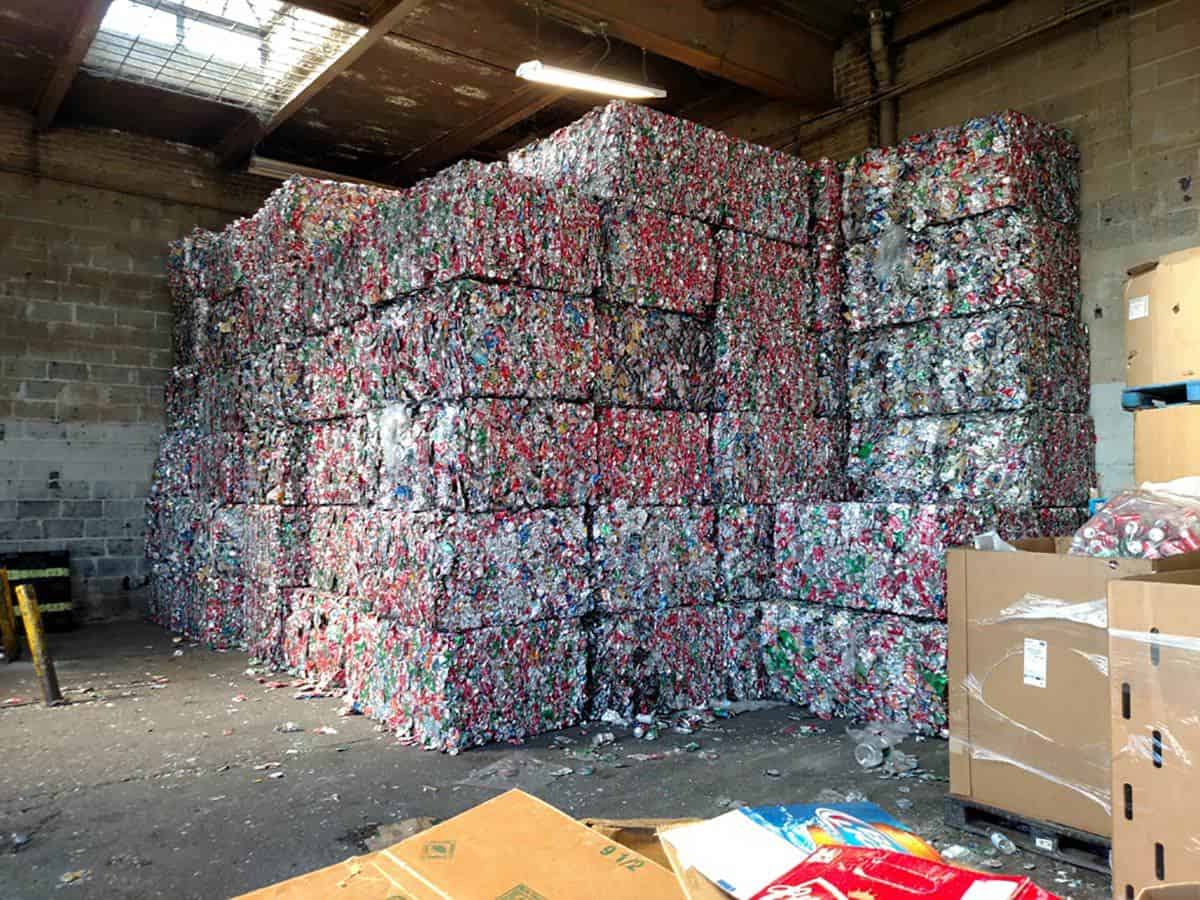

ALUMINUM CANS 700 lbs. (2.9)
TIN CANS 1,250 lbs. (5.5)
HDPE 1,125 lbs. (3.4)
PET 1,000 lbs. (2.5)

(percentage of caps on bottles will vary bale weights)
