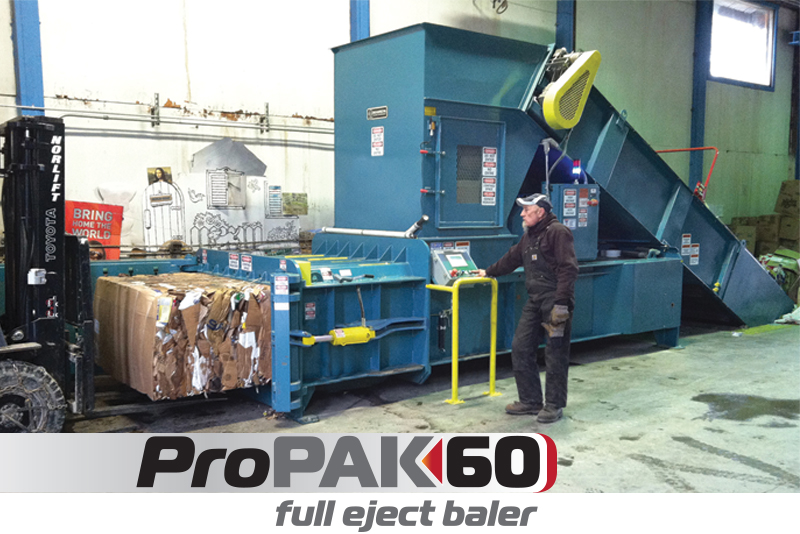

Maren ProPAK 60 Full Eject Baler

/Maren ProPAK 60 Full Eject Baler
Maren ProPAK 60 Full Eject Baler

Project Description

Maren ProPAK 60 Manual Tie Baler
Download Brochure
  • POST CONSUMER RECYCLING
  • DISTRIBUTION & WAREHOUSING
  • SCRAP METAL
  • MANUFACTURING BYPRODUCT
  • SHREDDED CORRUGATED,  FOLDING CARTON STOCK AND  COATED STOCK
  • RECYCLED CORRUGATED  CONTAINERS (OCC)
  • MOLDED FIBER PRODUCTS
  • NEWSPRINT INCLUDING ONP
  • MIXED AND OFFICE PAPER
  • MAGAZINES & SIGNATURES
  • SHREDDED PAPER
  • TISSUE MILL BROKE
  • TEXTILE
  • FOAM
  • PET & HDPE BOTTLES
  • ABS PLASTIC
  • PLASTIC FILM
  • ALUMINUM CANS (UBC)
  • STEEL CANS
  • STEEL SHEET AND FORMINGS
  • CARPET AND PADDING
  • ALUMINUM RADIATORS
  • ALUMINUM WIRE & CLIP
  • COPPER WIRE & CLIP
  • Largest hopper opening of its class
  • Highest ram face pressure of its class
  • Most durable baler of its class
  • Exclusive Smart Bale Technology

Take the guesswork out of your baling operation with Maren’s ProPAK60 Full Eject Baler with exclusive Smart Bale Technology. Not only can it intelligently customize bale size and weight to meet your shipping methods; it can communicate directly to your production personnel with up-to-the- minute notifications on throughput, jams, productivity and even keep track of its own maintenance schedule… it’s nothing less than the smartest of its class!

Maren ProPAK Innovative Features

54″ x 40″ feed opening — largest in class opening allows for unbroken boxes to fall in without obstruction

102PSI Platen Force — actual platen face pressure. Platen forces are rated by actual real force and not an “upto” or superficial number extracted from a maximum hydraulic system psi.

450 Brinell wear liners — for long service life and completely replaceable

Smart Bale Technology — Operator selectable bale sizes perfect for loading trucks or sea containers

Smart Shear — features a 27 point chassis shear blade, progressive platen shear and utilizes special bale chamber geometry to all but eliminate shear jams.

Easy Tie System — specially designed tie system allows for easy feed of bale wire without debris obstructing wire travel path. In addition, the Tie system is easier to operate and faster than other manual ties systems, including hydraulically assisted tie systems.

Retaining dogs — Simplistic and effective gravity actuated retaining dogs assist in keeping highly resilient material from expanding back into feed chamber after compression.

Automatic bale decompression — After a bale is tied off and complete in the chamber the main ram automatically decompresses, prior to the operator being able to open the bale door.

Streamlined hydraulic system — exceeds performance of competitors 30hp balers by utilizing high efficiency pumps and minimizing hydraulics components, hoses and leak points.

Interlocking construction — Chassis is constructed of ½” & ¾” steel plate which interlocks with the other chassis components by utilizing tab and slot construction which result in baling stresses being bared on the strength steel, not the welds.

Non-ferrous door — Shares same design as larger non-ferrous balers, for ultimate in durability.

Oversized cylinder mounts — for unmatched strength and durability

1-2-3 Warranty — 1 year labor, 2 year parts, and 3 year structure and cylinder

Remote mounted controls — The controls for operation, but more specifically bale ejection are mounted near the front of the baler giving the operator unrestricted view of the bale while ejecting a completed bale.

Competitive advantage: The ProPak60 makes 1000lb PET bale weights, compared to industry leading competitor at 800lbs. ProPak60=Only baler in its class that can weight out a sea container on PET plastic!1500lb OCC weights–single row of bales 2 high will weight a truck out

Performance Data

Piston pump coupled to a high pressure hydraulic system is specifically Full Eject Baler: designed to reduce horsepower loss and increase efficiency.

Platen force: 172,000 lbs

Platen: 102 psi

No load cycle time: 28 seconds with regen; 40 seconds without regen

105 gallon oil reservoir

20 hp. TEFC motor: Voltages available 208, 230, 415, 460, 575 Volt, 50-60 Hertz, 3 Phase

Enclosure: NEMA 12 Rated, NEMA 4 available, UL Approved

Controls: UL/CUL/CE Approved, NEMA 12 Rated

Target bale size:
60″ l : 152cm 30” h : 76cm
40-48″ w : 102cm-122cm (operator selectable)

Baleweights (Tons/HR.)*

* Bale Weights are approximate, and may differ with moisture content, material density, etc.

OCC 1,500 lbs. (short stroke) : 1,600 lbs. (full penetration)
MAGAZINES 2,000 lbs.
NEWSPAPER 1,500 lbs.
OFFICE PAPER 1,600 lbs.
ALUMINUM CANS 700 lbs. (makes full truck load)
TIN CANS 1,250 lbs.
HDPE 1,125 lbs.
PET 1,000 lbs.

(percentage of caps on bottles will vary bale weights)

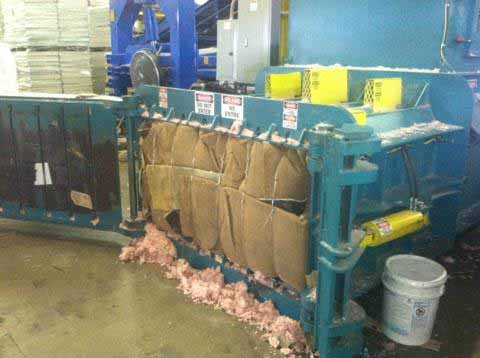

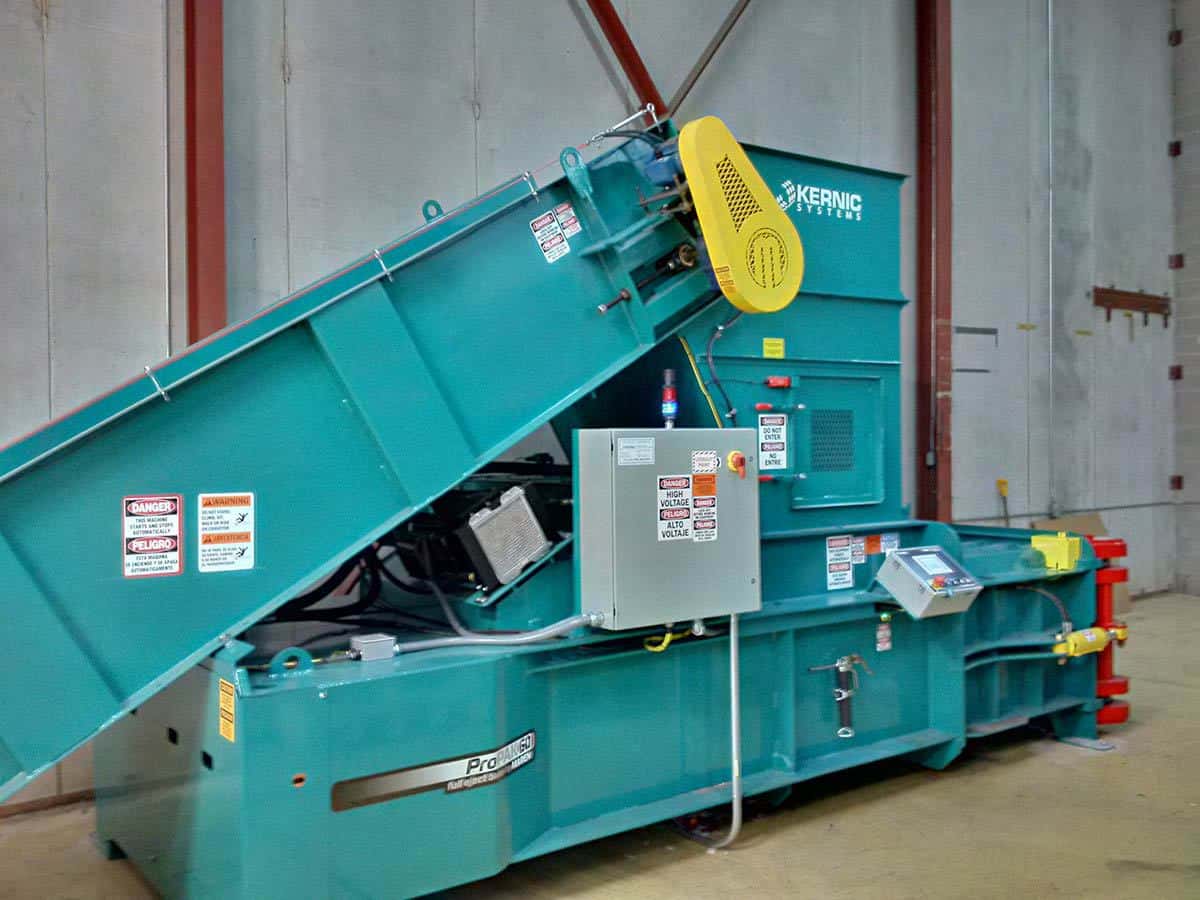

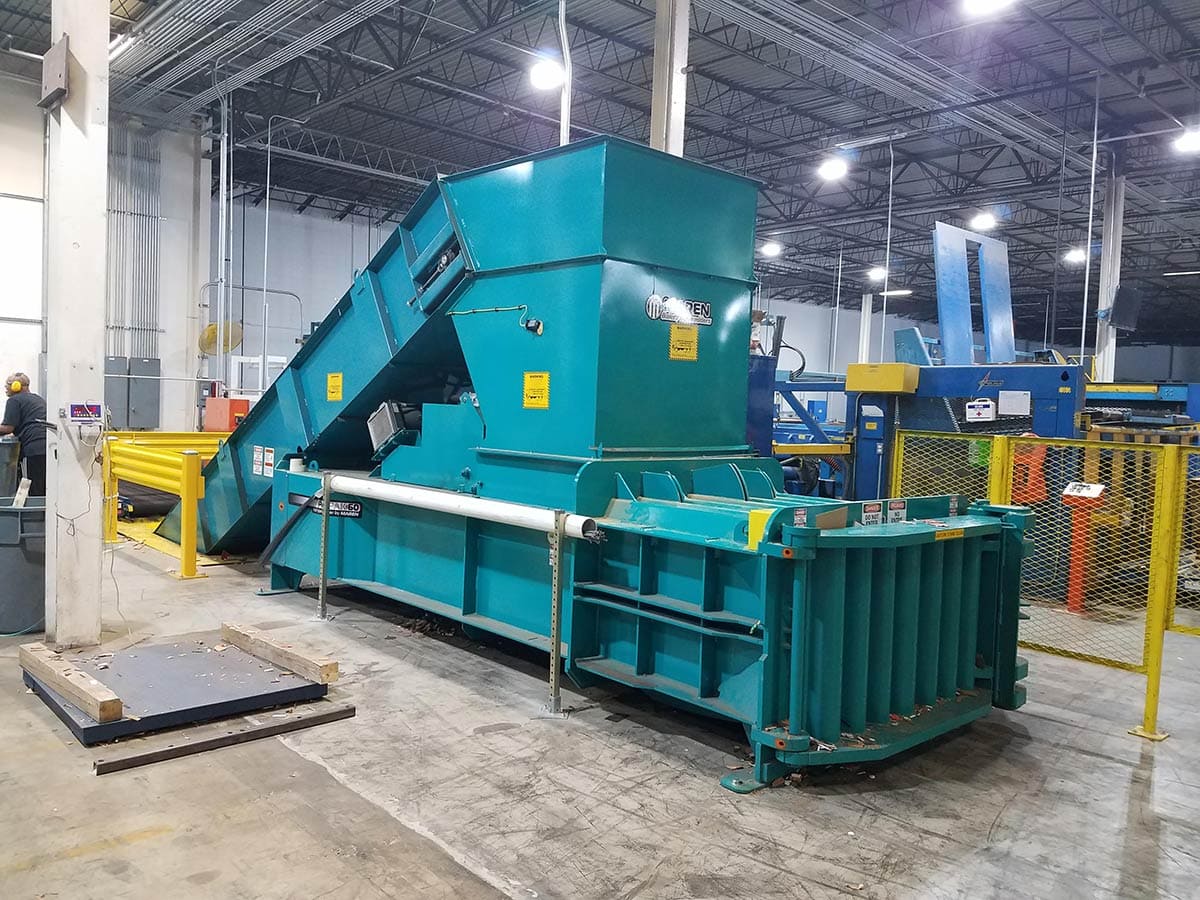

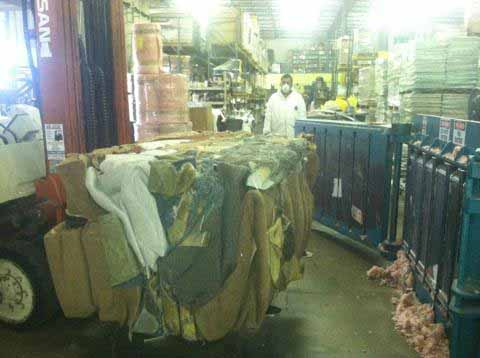

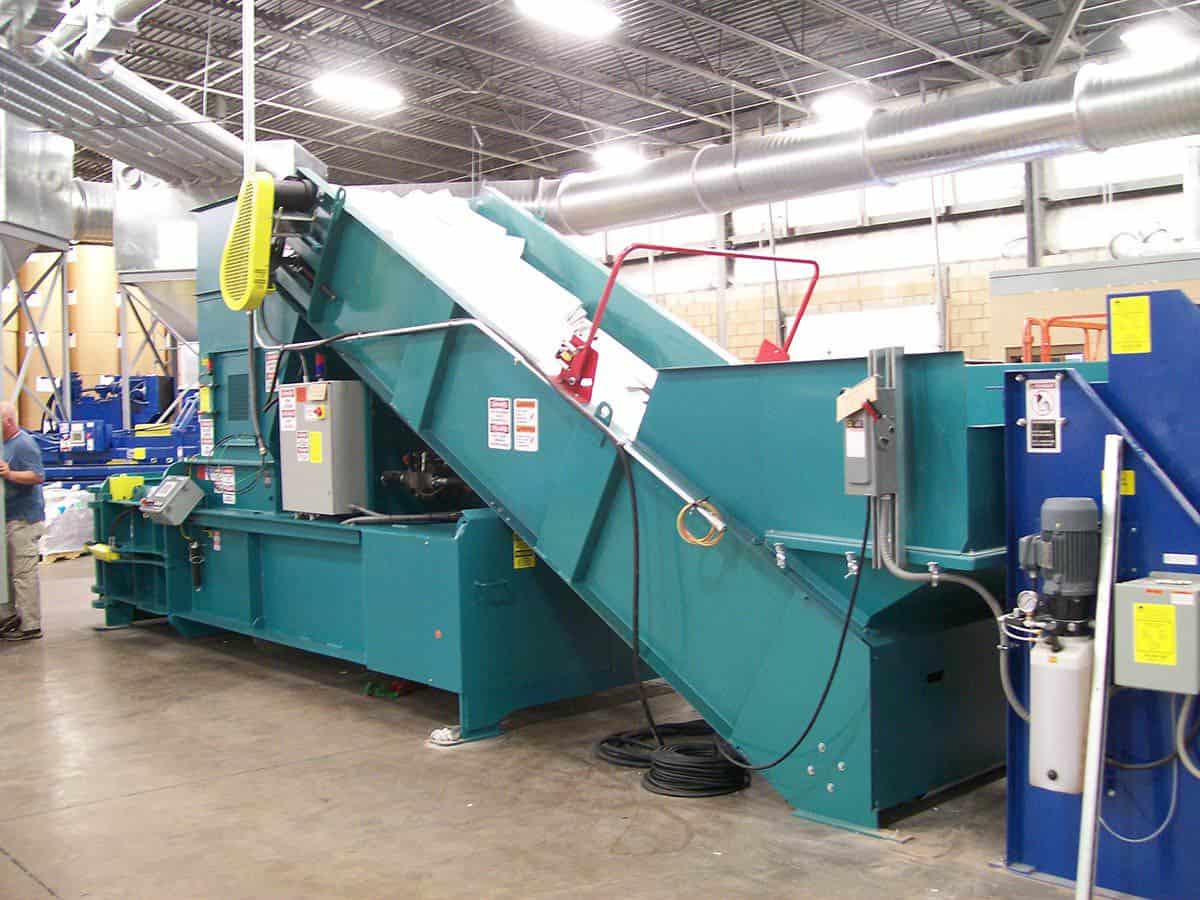

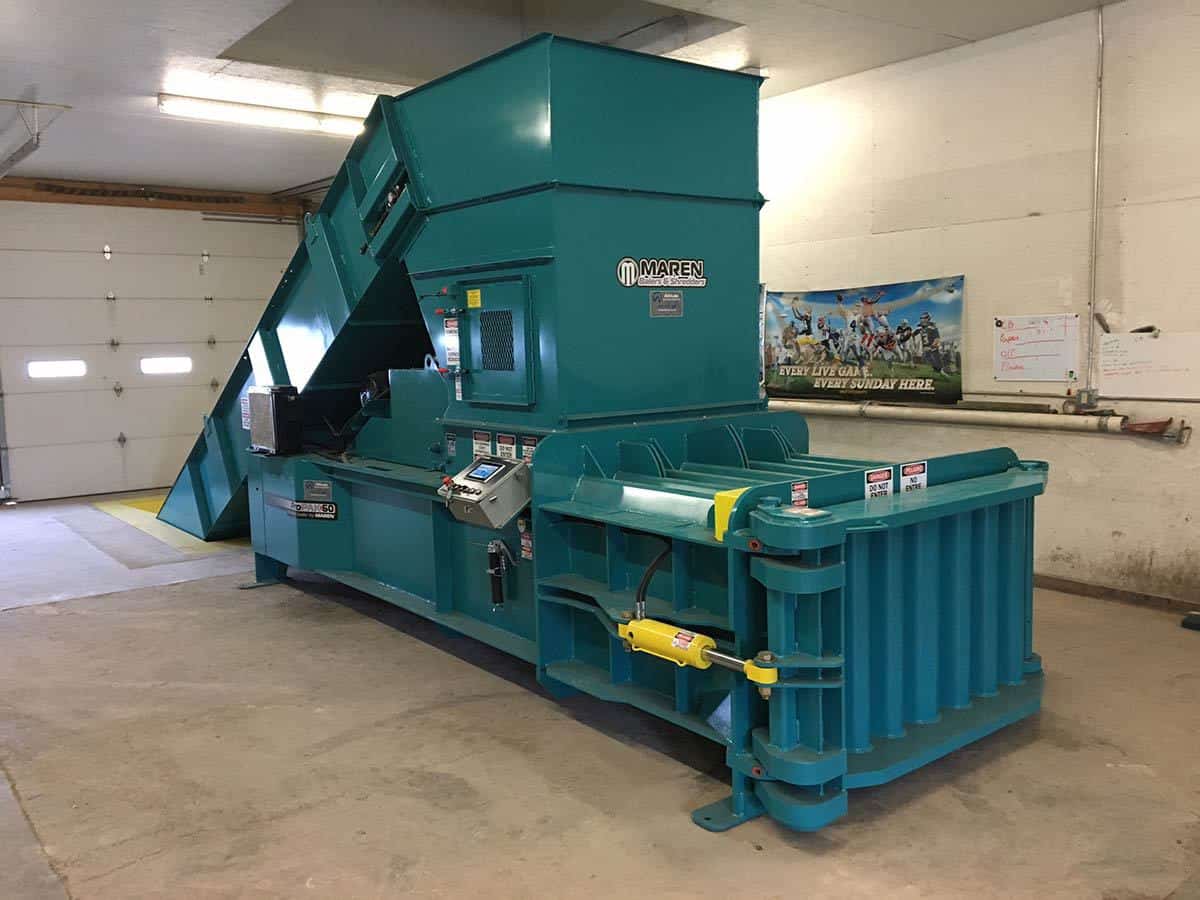

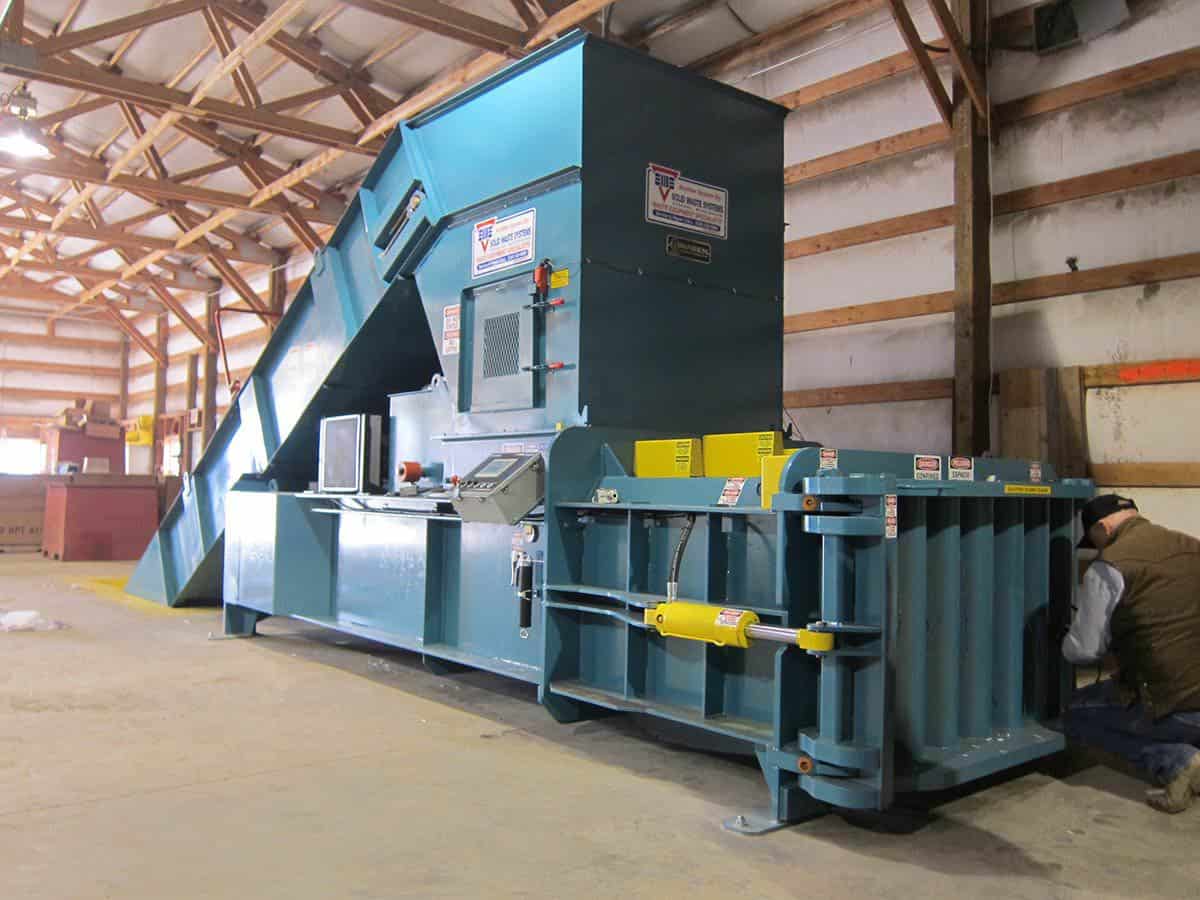

Photo Gallery
