Maren 423 Legacy Series Closed Door Baler

Project Description

Maren 423 Legacy Series
Download Brochure
  • DISTRIBUTION & WAREHOUSING
  • PRINTING, BOX PLANTS, TISSUE & MANUFACTURING BYPRODUCT
  • SHREDDING & SECURE DOCUMENT DESTRUCTION
  • SHREDDED CORRUGATED,  FOLDING CARTON STOCK AND  COATED STOCK
  • MOLDED FIBER PRODUCTS
  • SHREDDED PAPER
  • TEXTILE
  • FOAM
  • Extra Large Hopper Opening Makes it Versatile
  • Small Size Saves Valuable Floor Space
  • Operates while Unattended with Full Bale Buzzer
  • Features Automatic Bale Ejection for Operator Safety

Floor Space … use less – make more!

The Model 423 has an extra large feeder hopper that can be adapted to gravity, pneumatic or belt conveyor automatic feed devices.

Fully automatic baling cycle with start-compress-and-stop action, requiring only a part-time operator to tie-off bale and open ejector door. Bale automatically gets ejected as new bale is being formed. Saves space and money.

With all the operating features of larger more expensive balers, the Model 423 is the most efficient automatic baler of its kind!

  • Ez one step bale tie-off reduces labor, eliminates wire hanging in isle
  • Optional wire guide allows an operator to feed wires and tie-off all on one side
  • Fits in places where large balers can’t
  • Can be feed by airstream, conveyor or hand

Dimensions

Length: 144″
Width: 45″
Height: 40″
Height to top of chute: 66″

Feed Hopper

Length: 30″ : 40″ : 48″
Width: 30″
Depth: 30″

Baling Chamber

Length: 42″ : 54″
Width: 30″
Depth: 30″

Product Bale

Length: 42″ : 54″
Width: 30″
Height: 30″

Performance Date

Number of Bale Ties: 3

Motor: 10hp : 15hp : 30hp TEFC

Electrical Equipment: UL 508 Standards; 208-220/440-550 Volt, single or 3 phase power options

Total Press Weight: Approximately 3,200 lbs.

Cylinder: 4″

Operating Pressure: models available up to 3,000 psi.

Cylinder Force: models available up to 37,800 lbs.

Stroke Cycle: 10 second cycle time

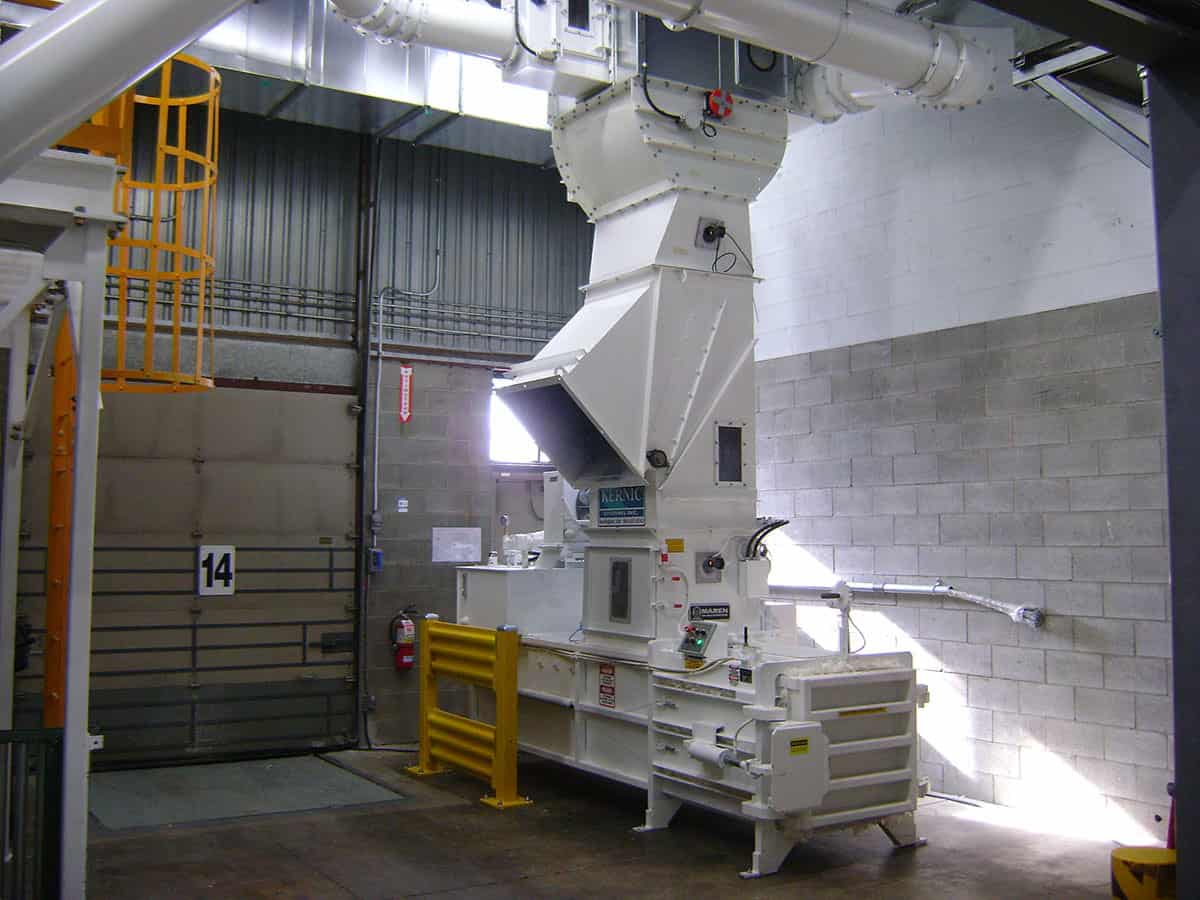

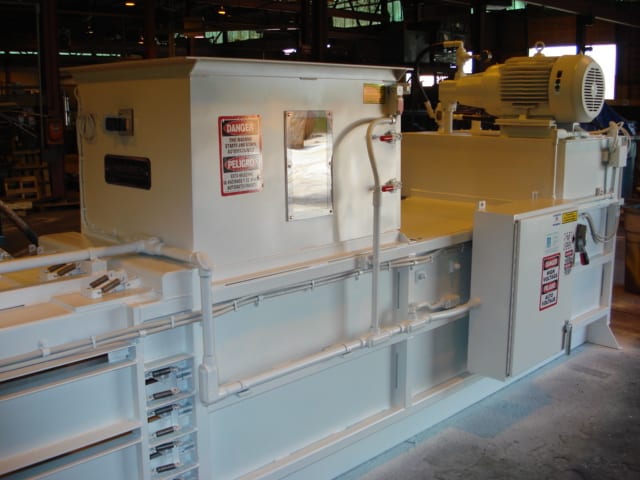

Photo Gallery
