The Model 14 is capable of baling from 3,000 to 4,000 pounds of material per hour. It is designed for use in lumber mills, saw mills and millwork plants, but exerts enough pressure to form extremely dense bales of paper, textile materials, paper dust and a wide variety of other materials.
Installation of the Maren Model 14 is easy. No pit or special foundation of any kind is required. Unit is shipped with oil in hydraulic reservoir and is pre-wired ready for operation. Just move it in, connect control panel to power and start baling.
Performance Data
Product Bale
Height: 18”
Width: 14”
Length: Whatever length you prefer
Bale Weight: A 30” bale will weigh approximately 70 lbs.
Number of Bale Ties: 2
Motor: 10 HP, T.E.F.C.
Electrical Equipment: J.I.C. standards: Primary 208-220/440-550 volt, 3 Phase, 60 cycle secondary 110 volt. lbs.
Thrust: 18,800 lbs.
Total Press Weight: 3,500 lbs.

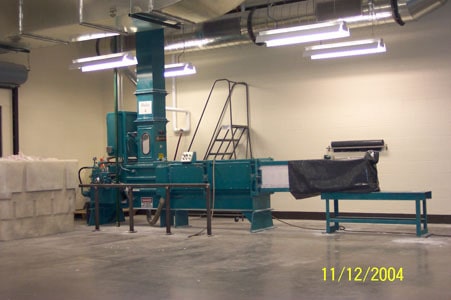

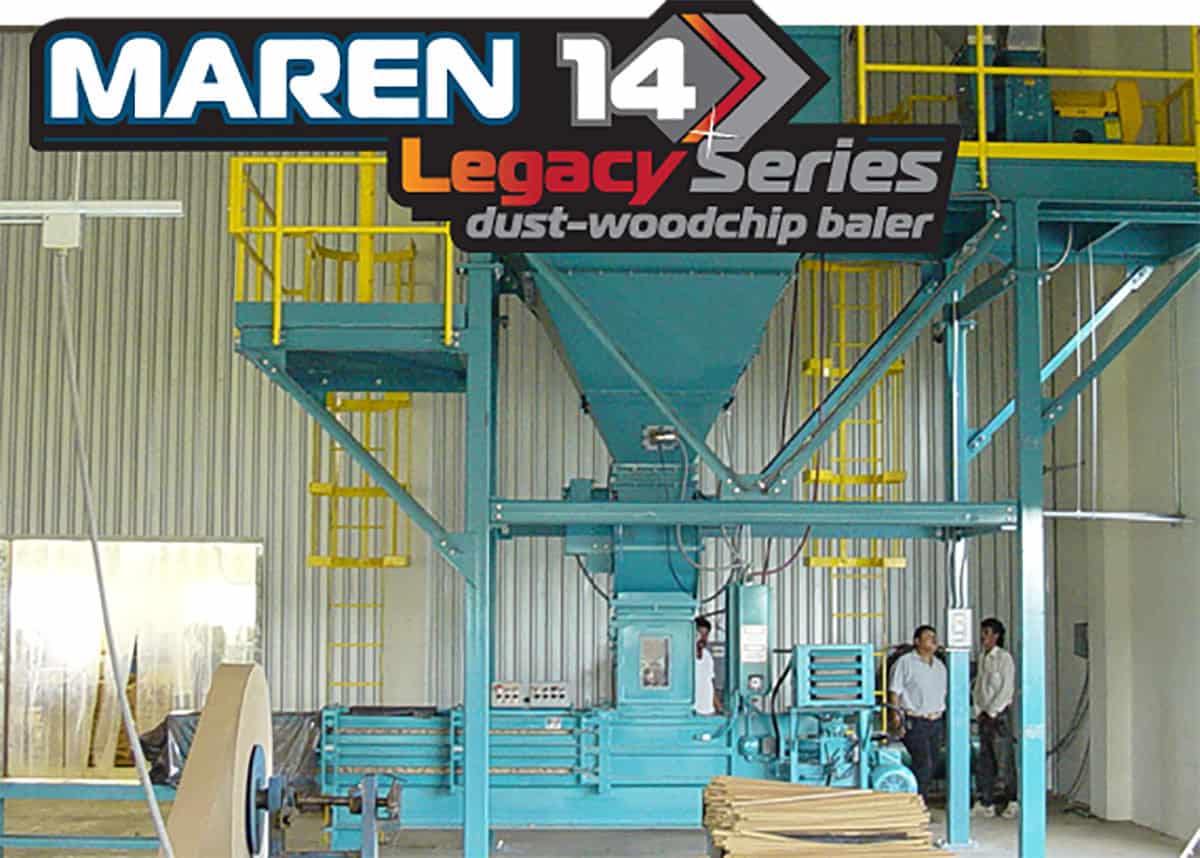

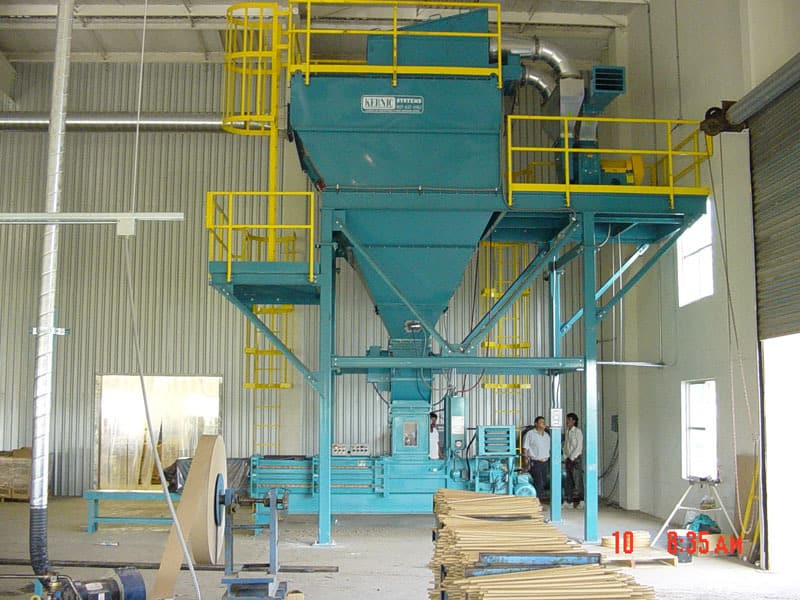

Photo Gallery
